Portable High Pressure Pneumatic Hand Pump • JM Test Systems

Alternative to Hydraulic Pumps or Heavy Nitrogen Cylinders for High Pressure Calibration

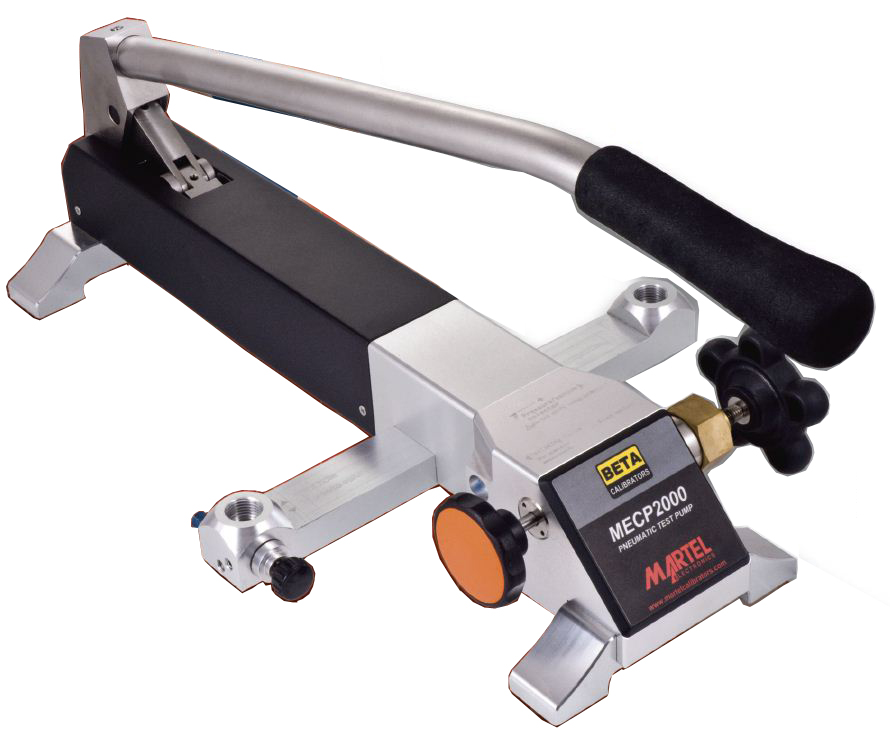

The new Martel Beta MECP 2000 high pressure hand pump is a revolutionary portable pneumatic pump that can generate pressures up to 2000 psi (140bar) and vacuum to -14 PSI (-0.9bar) quickly and easily. The Martel MECP 2000 uses a unique dual stage pump design where a low pressure, high volume chamber is used to pre-charge a secondary high pressure chamber. This allows the pump to reach high pressure quickly and with a minimal amount of effort. The pump motion stays smooth through the entire stroke. A precise vernier control allows pressure to be fine-tuned with high resolution. The vernier chamber provides enough range so it can be used to generate low pressures (200” H20 or 500mbar) with no pumping. Both high and low pressure calibrations can be done with one device.

Applications

High pressure calibration where hydraulic pumps are not preferable
Eliminate the need for nitrogen cylinders or use as back-up to nitrogen
Complete flow computer calibration solution for custody transfer applications
Bench-top gauge comparator
General pneumatic calibration

Features

Generate -14 psi (-0.9bar) to 2000 psi (140bar) by hand
Precision vernier allows fine adjustment at both high and low pressures
Vent valve offers precise control and vents at the pressure connection to prevent pump contaminates
Use as both a portable or bench-top pump
Double output manifold with 1/4 NPT female fittings includes BSP adapters
Extremely rugged design, will stand up to field use
Isolation valve protects pump and increases fine control range
