Instrument Test Bench

Test safety & critical controls equipment, pressure transmitters, switches, solenoids, gauges, and more. With every quote requested you will receive a detailed drawing.  Below you can review the various applications and benefits for having a custom instrument test bench in your shop.

Enter your input power and contact information below to request a Standard Instrument Test Bench Quote. You can also check/uncheck each option to customize your instrument workbench to your company’s exact specifications.



TEST YOUR EQUIPMENT & CONTROLS IN HOUSE

Instrument Test Bench

Applications:

  • Test all safety & critical controls equipment
  • Pressure Transmitters
  • RTD Transmitters
  • Thermocouple Transmitters
  • PSIA Transmitters
  • Pressure Switches
  • Temperature Switches
  • Solenoids
  • Gauges
  • Continuity
  • Valve Positioners
  • Controllers
  • DC Signals
  • Vac Transmitters
  • Electronic Switches
  • Power Supplies
  • Transducers

View our smaller Compact Instrument Bench

Instrument Test Bench Photo Gallery:

Benefits:

  • It saves you time! Allows users to test instruments prior to installation with accurate instruments.
  • Prevents possible safety hazards by performing calibrations prior to climbing scaffolding or going into a possible hazardous location.
  • Panel will allow users to test multiple pressure ranges with better accuracy at one station rather than pulling multiple pieces of equipment out to the field to perform test.
  • Users will also have accurate control of vacuum input for doing PSIA transmitters.
  • Some of the above instruments have to be calibrated using multiple instruments. With a custom bench, all these instruments are at your finger tips.
  • Every instrument on the bench is calibrated all in one place.
  • Plant air supply run to bench with control through low pressure gauge and blow down nozzle.
  • Controlled environment for performing testing of all safety and critical controls equipment.
  • Impress auditors, visitors or potential customers at your shop by having a central location for calibration.
  • Improves overall shop cleanliness, organization and presentation.
  • Allows for accountability of test equipment by being mounted in panel. Cannot easily be removed.

Instrument Test Bench Quote Request

The Standard Instrument Test Bench options are loaded by default. Simply enter your input power and contact information to request a quote. To clear your customization and load the standard options again, simply reload the page.

    Test Panel Section

    24 Volt Indicator

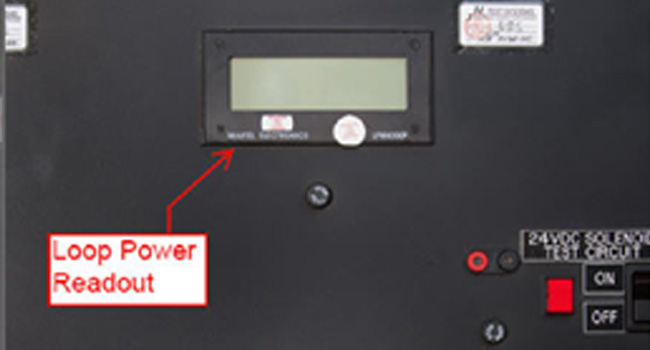

    Loop Powered Meter
    24V Power Supply Jacks
    Plug strip options of 120VAC, 240VAC Shuko, and 240VAC type G

    24vdc solenoid test
    120 vac solenoid test
    120 VDC Electrical Test Bench Solenoid
    240vac Solenoid Test Circuit
    24vdc Continuity Test (Audible & Visual)
    5.5 Digit Multimeter Fluke 8808A Bench Mount
    Variable DC power supply

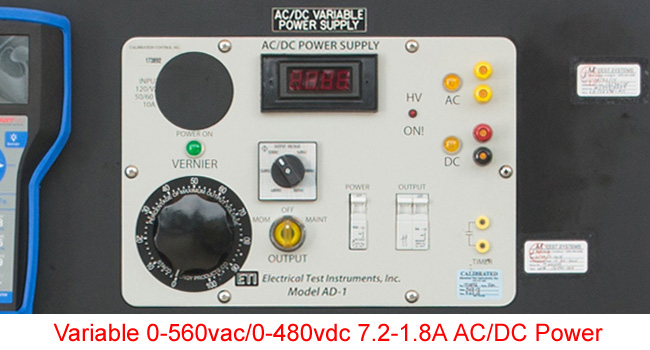

    High Range Variable AC/DC Power Supply
    250 Ohm Precision Load Resistor
    AC Leakage Current Tool Tester Motor Test Bench Options

    Function Generator
    Digital Oscilloscope Test Bench Mount
    OPTION


    Table Top & Base


    Instrument Stand - (Clamps in Vise)
    Vise 5.5in mounted on electrical test bench
    Cylinder rack on instrument test bench
    Left Base/Stand
    Test bench stand with casters

    Right Base/Stand
    Drawer - Stand Options for Electrical Test Bench Stand

    Pressure Ranges

    High Pressure Instrument Test Bench
    300psi Instrument Testing Workbench
    Vacuum Pressure Control and Vacuum Pump
    Vacuum Pressure Control and Vacuum Pump

    Options

    15,000 PSI (1034 Bar) Hydraulic Gauge Cal System

    Hydraulic Hand Pump 6,000 PSI (400 Bar)

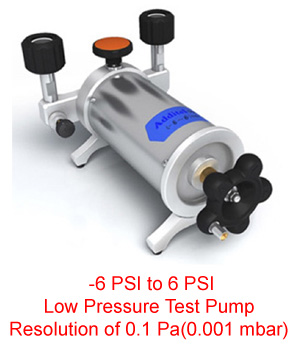

    -6 to 6 PSI Test Pump – resolution: 0.1 Pa(0.001 mbar)
    Low Pressure Test Pump
    -6 to 6 PSI Test Pump – resolution: 0.1 Pa(0.001 mbar)
    Low Pressure Test Pump

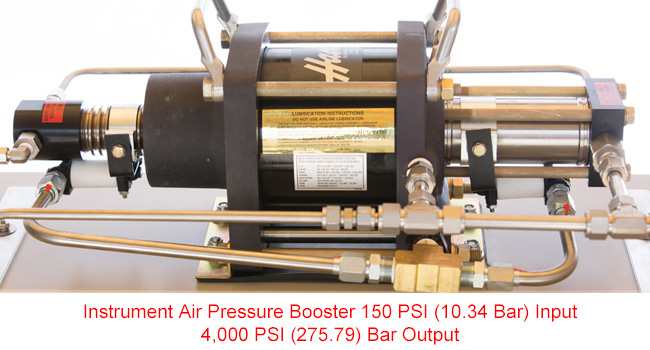

    Instrument Air Pressure Booster 150 PSI (10.34 Bar) Input/ 4,000 PSI (275.79) Bar Output

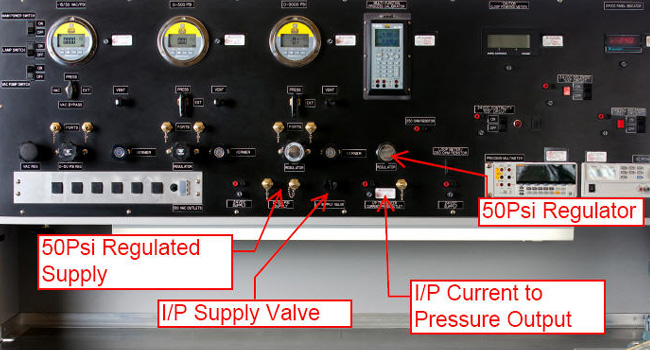

    50 PSI Regulator Output Supply
    I/P Current to Pressure 4-20mA Input/ 3/15 PSI


    Accessories

    10,000 PSI 689.48 Bar Hydraulic Deadweight Tester
    3000 psi 200 Bar Pneumatic Hand Pump with instrument test bench
    Instrument test bench temperature calibrator
    Blow down port regulator
    Nitrogen Regulator
    Decade Box RTD Simulator
    Overhead Light Bench Mount
    Under console lamps
    Ralston instrument fitting kit test bench add on

    Metric sets are available

    Basic Tool Box Set
    Intermediate 171pc Tool Box Set
    Master 352pc Tool Box Set
    30 Pc Insulated Electrician Tool Package
    Electrical Test Bench Switchboard Matting
    Instrument Test Bench Multifunction Calibrator and Communicators
