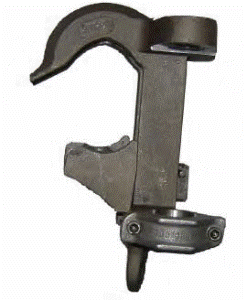

MacLean 01-M-044A “C” Clamp 5H for 4/0 AWG

“C” Clamp 5H for 4/0 AWG

QTY:

Manufacturer

SKU: 01-M-044A Category:

Product Overview: MacLean 01-M-044A “C” Clamp 5H for 4/0 AWG

Features:

  • Can be installed on all electrical facilities, apparatus, round bus bar and flat bus base as well as various equipment (trucks, pulling equipment, etc.)
  • Installation eye for use with shotgun stick
  • 01-M-044A fitted to receive a 30mm ball stud
  • Stress relief to reduce cable damage and serves as shock damper if fault occurs
  • Lubrication chamber for upkeep of threads

Benefits:

  • Lightweight and easy to use
  • Compact design allows use in restrained areas
  • Wide range taking allows for use in several grounding applications

Material:

  • Aluminum body, keeper and eyescrew A356T6
Catalog NumberJumper Cable Min.Jumper Cable Max.Main Conductor Min (in)Main Conductor Max (in)Jaw Opening (in)Tested 15 CyclesMaximum PeakLast Cycle PeakWeight Lbs (kg)
01-M-044A (5H)#24/0(0.13) 4 AWG2 3/82 1/247kA126kA70 kA2.6
