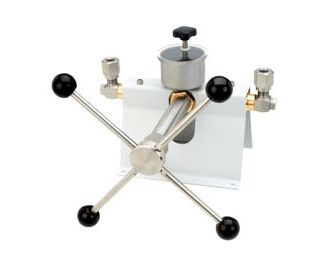

Name: Fluke Calibration P5514-70M Hydraulic Comparison Test Pump
SKU: P5514-70M
Availability: InStock

Fluke Calibration P5514-70M Hydraulic Comparison Test Pump

P5514-70M Hydraulic Comparison Test Pump

Product Overview: Fluke Calibration P5514-70M Hydraulic Comparison Test Pump

Fluke Calibration P5514-70M Hydraulic Comparison Test Pump

Generates pressures to 10,000 psi (700 bar)
Bench mounted design
Operational with a wide range of fluids
Screw press for fine pressure adjustments

Can be used with the 2700G Reference Pressure Gauge to provide a complete calibration solution.
These instruments are used for checking pressure measuring instruments against master test gauges, indicators or transducers. These hydraulic test pumps provide a quick and easy solution for checking pressure measuring instruments to 10,000 psi (700 bar).

Fluke Calibration P5514-70M Specifications
Pressure Range	0 to 10,000 psi (700 bar)
Test Port Adapters	(2 sets) 1/8, 1/4, 3/8 and 1/2 NPT or BSP
Instrument Size (W x D x H)	11 x 11 x 10 in (280 x 280 x 254 mm)
Instrument Weight	11 lb (5 kg)
Reservoir Volume	75 cc
Screw Press Displacement	20 cc
Fluid Media	The standard O-ring seals are Viton®. Ethylene Propylene seals are available for use with solvents, fuel oils, brake fluids or other similar aggressive fluids. P5514: Viton® P5514: Ethylene Propylene
