Product Overview: Additel 918 Pneumatic Pressure Test Pump

Additel 918

• Generate 95% vacuum to 1,500psi(100 bar) pressure

• Portable, only 5.7 lb

• Great stability and high resolution

• Minimal maintenance

• Hand-tight quick connectors

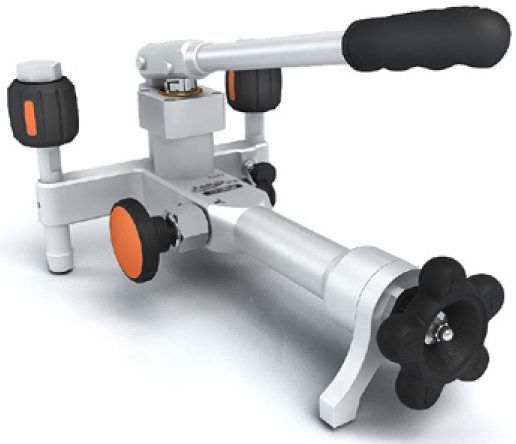

The Additel 918 Pneumatic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95% vacuum to 1,500psi (100bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 10 Pa (0.1 mbar). A specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 918 is an ideal comparison test pump for pressure instruments calibration.

Features

• Portable
Only 5.7 lb

• High Resolution
0.001 psi (10 Pa, 0.1 mbar)
High-quality screw press for fine pressure adjustment

• Great Stability
A specially designed shut-off valve makes the pressure as stable as possible during calibration.

• Durable and Minimal Maintenance
Built-in gas-liquid isolator protects the pump from moisture and dirt.

• Easy-to-use
Pressurized to desired pressure by the lever directly and make fine adjustment. No high-pressurized valve needed.

• Hand-tight Quick Connectors
Allows easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches.

Applications

The Additel 918 is designed to generate pressure from 95% vacuum to 1,500 psi (1000 bar) for the application requiring accurate pressure testing and calibration. It can be used in calibrating large size pressure gauges, transmitters, or other pressure measuring instruments.

Specifications

• Media:
Air.

• Generated Pressure Range
95% vacuum to 1,500 psi (100 bar) positive pressure

• Adjustment Resolution:
0.001 psi (10 Pa, 0.1 mbar).

• Material:
Ram/adapters: SST
Body: SST/aluminum
Seals: Buna-N

• Connection:
Hand-tight connectors for both test gauge and reference gauge.

• Test Gauge Connection:
1/4NPT female, 1/4BSP female, or M20X1.5 female
Reference Gauge Connection: 1/4NPT female , 1/4BSP female, or M20X1.5 female

• Dimensions:
Height: 5.5” (140 mm)
Base: 12.4′ (315 mm) x 7.8′ (198 mm)

• Weight:
5.7 lb (2.6 kg).

• Warranty:
1 year
