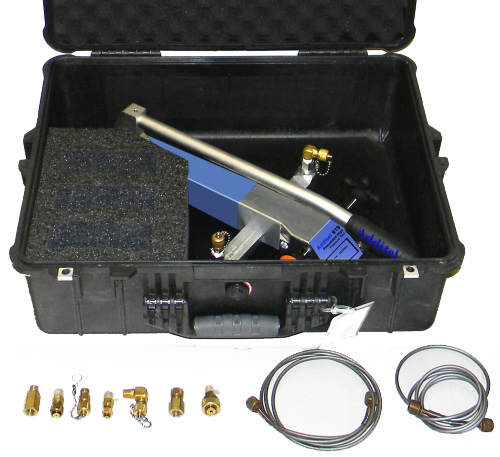

Hand Pump Kit with Custom Case

Hand Pump Kit

Additel ADT-920 3K psi Pneumatic High Pressure Test Hand Pump Kit with Fittings

Additel ADT 920 Hand Pump Kit with Fittings

Hand Pump Kit Includes:

  • JM Medium Black Case – 12’x4’x2′
  • ADT920 – Test Pump  -14 to 3K psi
  • PEL-1600 – Black Pelican Case
  • RAL-QTFT-2MBO(fitting)
  • RAL-QTFT-2MBL(fitting)
  • RAL-QTHA-2MBO(fitting)
  • RAL-QTHA-2TBO(fitting)
  • RAL-QTHA-3TBO(fitting)
  • RAL-QTHA-4TBO(fitting)
  • RAL-QTQT-HOS-005FT(fitting hose)

High Efficiency
  Generate 3,000 psi (200 bar) in 40 seconds.

• Adjustment Resolution
  0.001 psi  (10 Pa , 0.1 mbar).
High-quality screw press for fine pressure adjustment.

• Great Stability
  A specially designed shut-off valve makes the pressure as stable as possible during calibration.

• Durable and Minimal Maintenance
  Built-in gas-liquid isolator protects the pump from moisture and dirt.
The residual liquid in the pump introduced from devices under test will be collected and then pushed out and collected during pressure release.
Anticorrosive and wear resistant material are used to improve the reliability further.

• Hand-tight Quick Connectors
  Allows easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches.

Applications

The Additel 920 is designed to generate pressure from 95% vacuum to 3,000 psi (200 bar) for the high pressure application requiring accurate pressure testing and calibration. It can be used in calibrating high pressure gauges, transmitters, or other pressure measuring instruments.

Hand Pump Kit Questions?

Contact us today for more information or to request a quote.
