Electronic Test Bench

You will receive a detailed drawing of your electronic test bench with your quote request. Customize the included components to meet your company’s specifications. This custom diagnostics and repair bench can help troubleshoot and repair electronic components and integrated circuitry. Consider the advantages of having all of your electronics testing and repair devices all in one convenient location.



SAVES TIME •  GREAT FOR TRAINING

Electronic Test Bench

Applications:

  • Electronics Design and Manufacturing
  • Research & Development
  • Troubleshooting & Evaluation of Printed Circuit Boards
  • Component Diagnosis
    – Transistors
    – Diodes
    – Resistors
    – and More
  • Voltage/Resistance/Current Measurements
  • Many Different Circuit and IC types including
    – Amplifiers
    – Oscillators
    – RF Transmitters
    – Electronic Switches

Benefits:

  • Saves you time! Allows users to analyze circuit boards and other electronic elements prior to assembling.
  • All the instruments on the electronics test bench are calibrated and located in one place.
  • Great unit to have for training purposes.
  • Impress auditors, visitors and/or possible customers at your facility.
  • Improves overall facility cleanliness, organization, and presentation.
  • Allows for accountability of test equipment by being mounted in the panel.

Electronic Test Bench Photo Gallery:

Electronic Test Bench Quote Request

    Electrical Section

    Plug strip options of 120VAC, 240VAC Shuko, and 240VAC type G

    24vdc solenoid test
    120 vac solenoid test
    120 VDC Electrical Test Bench Solenoid
    240vac Solenoid Test Circuit
    24VDC Continuity Test
    Under console lamps
    24V Power Supply Jacks
    24vdc Panel Indicator
    Variable DC power supply
    Huntron Tracker
    Digital Oscilloscope Test Bench Mount
    5.5 Digit Multimeter Fluke 8808A Bench Mount
    Function Generator alt="Function/ Arbitrary Waveform Generator Test Bench Mount"/>
    10 digit RF frequency counter workbench mount
    Decade Box RTD Simulator

    Additional Options

    Overhead Light Bench Mount
    250 Ohm Resistor

    ETI Variable AC/DC Power Supply 0-560VAC/0-7.2A & 0-480VDC/0-7.2A
    Handheld Logging Multimeter

    Calibrator Section

    Multifunction Calibrator

    Bench Section

    Butcher Block Countertop w/ Neoprene Rubber:

    Vise 5.5in mounted on electrical test bench
    Left Base/Stand
    Test bench stand with casters

    Right Base/Stand
    Drawer - Stand Options for Electrical Test Bench Stand


    Circuit Board Holder for workbench
    LED Magnifier Lamp for workbench

    Bench Accessory Section

    Metric sets are available

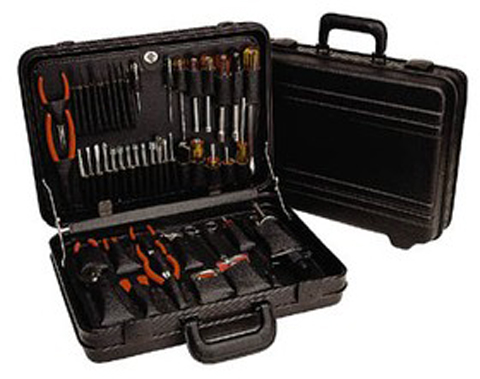

    Electronic Technician 51pc Tool Set

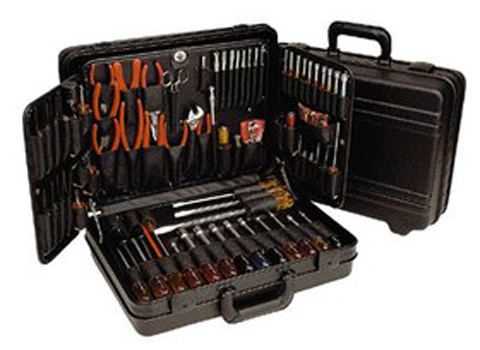

    Electronic Technician 86pc Tool Set
    Electronic Technician 89pc Tool Set
    Digital Soldering Station
    Soldering - Desoldering Station - Motor Test Bench Add-on.jpg
    650W Hot Air Station
    Video Microscope With Monitor Electronic Test Bench Mount
    Electronic Test Bench Top Mat with Wrist Straps
