Control Valve Leak Rate Tester

Our custom control valve leak rate test stand allows you to determine leak rates on new and existing valves before returning them to service. They can be customized to handle valve flange diameters up to 12 inches. Flange clamp assembly is powered by a pneumatic cylinder that provides clamping pressure for the valve to be tested. Can be manufactured to meet your plant/facility specs.

Save time and money by testing repaired or new valves before installing them for service. We also repair/rebuild/upgrade your old valve testers and add a new instrument panel for more accuracy and efficiency.



Each custom quote includes a detailed drawing.

Customize to your company’s specifications.

  • Flange clamp assembly is powered by a pneumatic cylinder that provides clamping pressure for the valve to be tested.
  • Provides 24 / 48 VDC power for solenoid valves attached to valves being tested.
  • Provides a 4/20 milliamp signal to an (I/P) transducer attached to valves being tested.
  • Provides 0-30 psi air supply source to a positioner supply port and a 3-15 psi air supply to the signal port.
  • Both “air to open” and “air to close” valves can be tested with the features provided.
  • Leak rates are determined by selecting one of the 3 flow meters, .3-3, 4-40, 20-200 SCFH. The bubble leakage rate is determined by the bubble action with the vent submerged in the beaker filled with water.
  • A variable regulator controls the 0-100 psi supply to the inlet valve test port.

Control Valve Leak Rate Tester Quote Request

Electrical Section

120vac 20a GFCI Receptacle
24vdc Supply

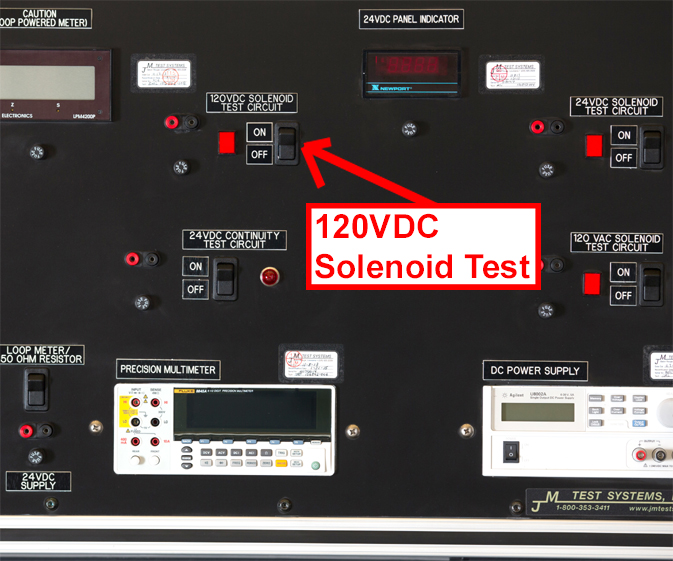

Control Valve Leak Rate Tester 120vdc Supply


Pressure Section

Analog Gauge 0-100 PSI Output
Analog Gauge 0-100 PSI Output
Analog Gauge 0-100 PSI Output
.3-3 SCFH Flow Meter
4-40 SCFH Flow Meter
20-200 SCFH Flow Meter
20-200 SCFH Flow Meter

What will the input power be?

Model, Make, and Sizes of the Valves to be Tested?*


Additional Options

Change Gauges to Vaetrix Digital Gauges

     Note: Vaetrix Gauges Have .05% Accuracy

What range(s) do you need?

Calibrator Section

Instrument Test Bench Multifunction Calibrator and Communicators


Bench Accessory Section

Metric sets are available

Basic Tool Box Set
Intermediate 167pc Tool Box Set
Master 352pc Tool Box Set
30 Pc Insulated Electrician Tool Package
